Quality used universal Faston/Inpower (SBF-90, Inpower Eight Lamp School Bus Electronic Flasher / Controller – Multi-Lock) 8-Way Flasher Controller for buses backed by our standard warranty.

SBF-90
Eight Lamp School Bus Electronic Flasher / Controller
Operable in Sequential Mode (Flash Red After Amber / FRAA) or in Non-Sequential Mode (Flash Red)
1/4″ Faston Blade Connections
Package Contents: (1) SBF-90 Module / (1) Operations Card
Input Voltage: 8-16 Volts
Output Current (Pins:3,4,6&7) 16 Amps
Output Current (Pins:5) 3 Amps
Supports all 8-lamp and 4-lamp operations
Meets all FMVSS 108 lighting requirements
Can be used for sequential or non-sequential operation
Direct “drop in” replacement for Weldon model 7000
Designed to work with either LED or incandescent lights

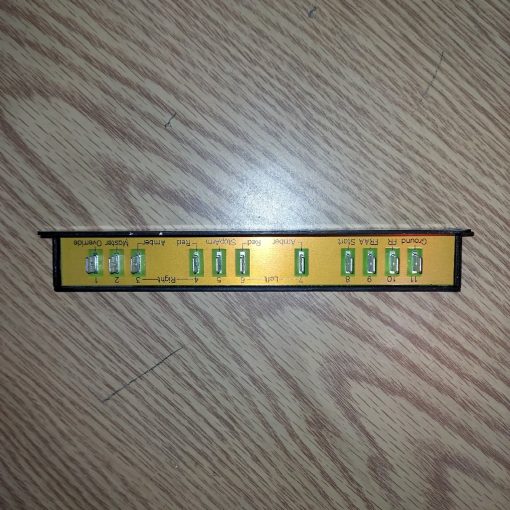

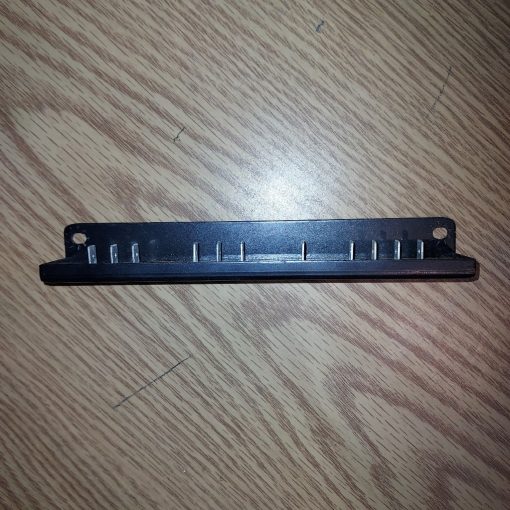

Connections are .250 Fast-on blade terminals
3 Amp stop arm control provided
Master switch control circuit provided
Voltage: 8 -16 Vdc
Output current: 16 Amps
Case: Anodized Aluminum
Operating temperature: -40 to +85C

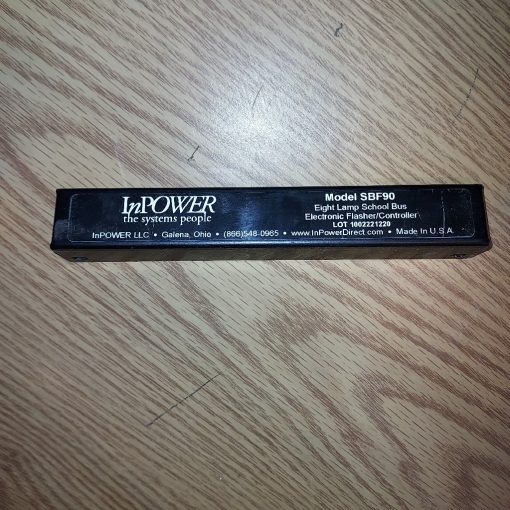

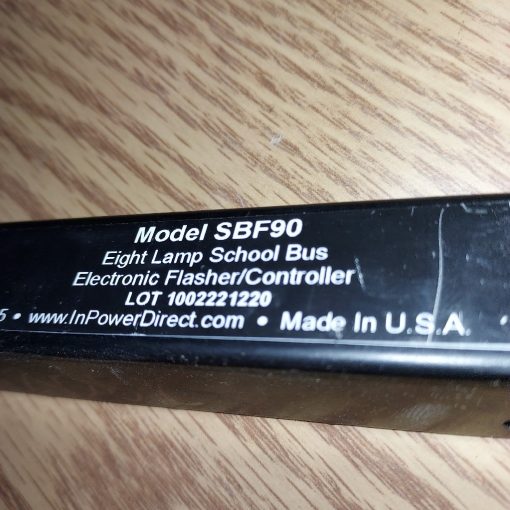

InPower model SBF-90 solid state electronic 8-way flasher unit.
Direct “drop in” replacement for Weldon model 7000.
Designed to work with either LED or incandescent lights.
Meets or exceeds all performance specs of Weldon model 7000.

OEM # 0072152, SBF-90, SBF90, FLASH90, SBF-90, 03-FF-90, FSH-SBF90, LK5360, NBPSBF90

Please Note: The part sent may not exactly match the one pictured. Appearance may vary. For specific part requests, please call 888-315-2575. Additional core charge may apply.
