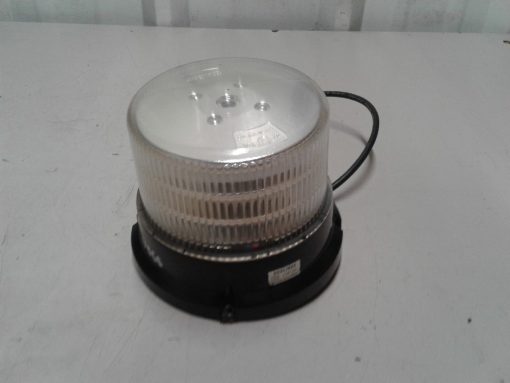

Quality used Opti-Luxx High Profile LED Strobe (100BC0001) (3 wire, 4.5″), backed by our standard warranty.

Please note In order to install the beacon with the desired pattern, you will have to put power to the beacon, then briefly touch the brown wire to the power source. This allows you to toggle through the 4 flash patterns.

Plug and play compatible with existing 3-hole beacon mounting patterns

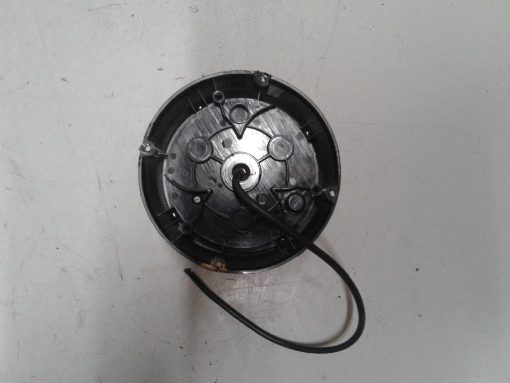

Center drop wire for ease of installation
Best in class optics provides light output that meets SAE J845 Class 1 requirements
360 degree illumination provides outstanding visibility from all angles
Adhered base gasket assures a water tight seal to the vehicle without the use of sealants
Flash Patterns: Double, Triple, Quad, Rotating
Input voltage range: 10-30 Volts
Current Draw: 1.02/1.4A (min/max)
LED Count: 36
Operating Temperature: -40 Celsius to +65 Celsius
Dimensions: 4.88″ High (124 mm) x 6.7″ (170.99 mm) Diameter
Mounting: Surface Mount, 3 Holes on 5.99″ (152.1mm) Permanent (screw) Adhered EVA gasket

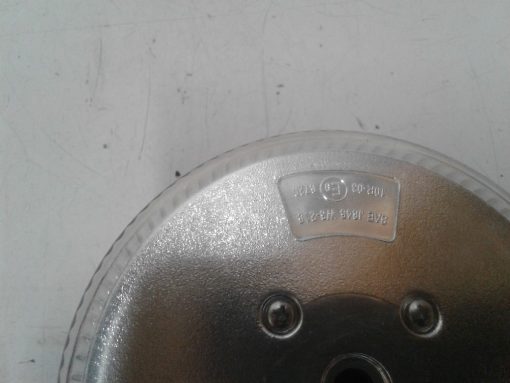

Certifications: SAE J845/J2139 Class 1 FMVSS/CMVSS 108 IP Code IP67

OEM # G-1467, 19513412, 100BC0001, 002LI925, 100BC0001-A, USB3107LCA, NBPSOELB43BCL0WC

Please Note: The part sent may not exactly match the one pictured. Appearance may vary. For specific part requests, please call 888-315-2575. Additional core charge may apply.
